BathSoft.

A bathroom filter has to do three things at once: treat the water, fit the space, not announce itself.

Book a free survey Or call us

The problem this solves

What changes when the water is right.

Removes hardness, particulate, and chlorine residual at the bathroom feed.

Engineered for 200 mm ceilings, 150 mm shafts, retro-fit niches — not the other way around.

Inside cabinets, ceiling voids, wall recesses. Once installed, you stop seeing it.

Monthly engineer visit. Same person. Named, for the life of the contract.

How we solve it

Sized to the water, the house, and the people in it.

Chemistry

decides the media.

Household

decides the capacity.

Architecture

decides where it goes.

Engineered, not bought off a shelf.

Inside the vessel

The engineering, in section.

What the system looks like on the cutaway. Media bed, distributor, freeboard, control head — the visible engineering that decides what the water does over the next fifteen years.

BathSoft — engineering cross-section showing vessel internals, media bed, distributor, and control head

What’s included

Everything to put it in. Everything to keep it running.

Engineered vessel + media

FRP / SS316 cylinders sized to the bathroom feed. Media tuned to your water.

Hidden install accessories

Brackets, finish-panel hardware, access provisions for ceiling / niche / cabinet / under-counter.

Installation

Plumbing, electrical, mounting, commissioning. Documented before handover.

Water analysis

Pre + post-install parameter readings. Repeated on every visit.

One-year warranty

All system components covered. Replacement, not repair-by-letter.

One-year AMC

Monthly engineer visit on Comprehensive. Same person, named, for the contract.

Where it goes

Five places it disappears.

BathSoft is engineered for real Indian bathrooms — tight shafts, low ceilings, finished interiors. Specified at site survey. Decided before tile.

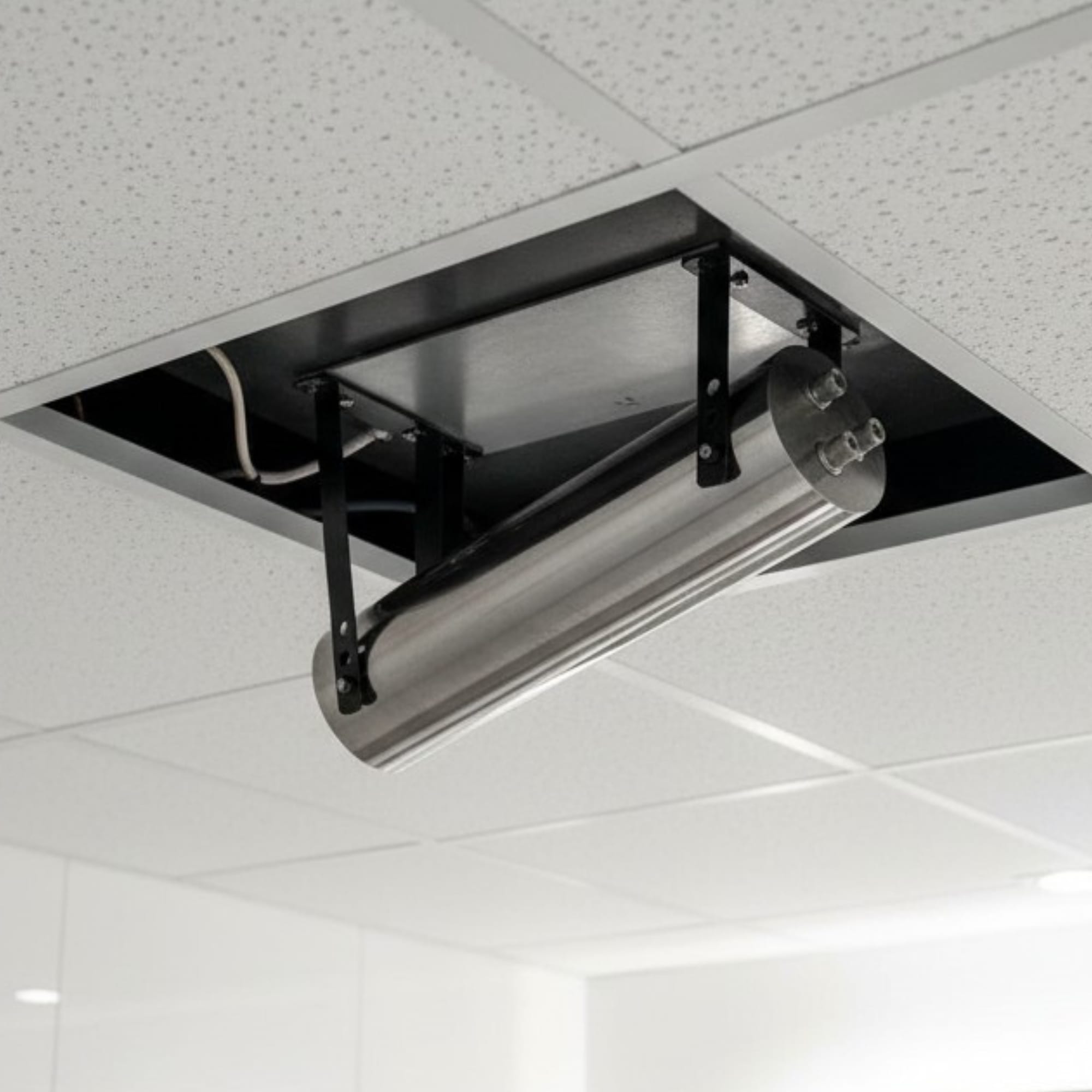

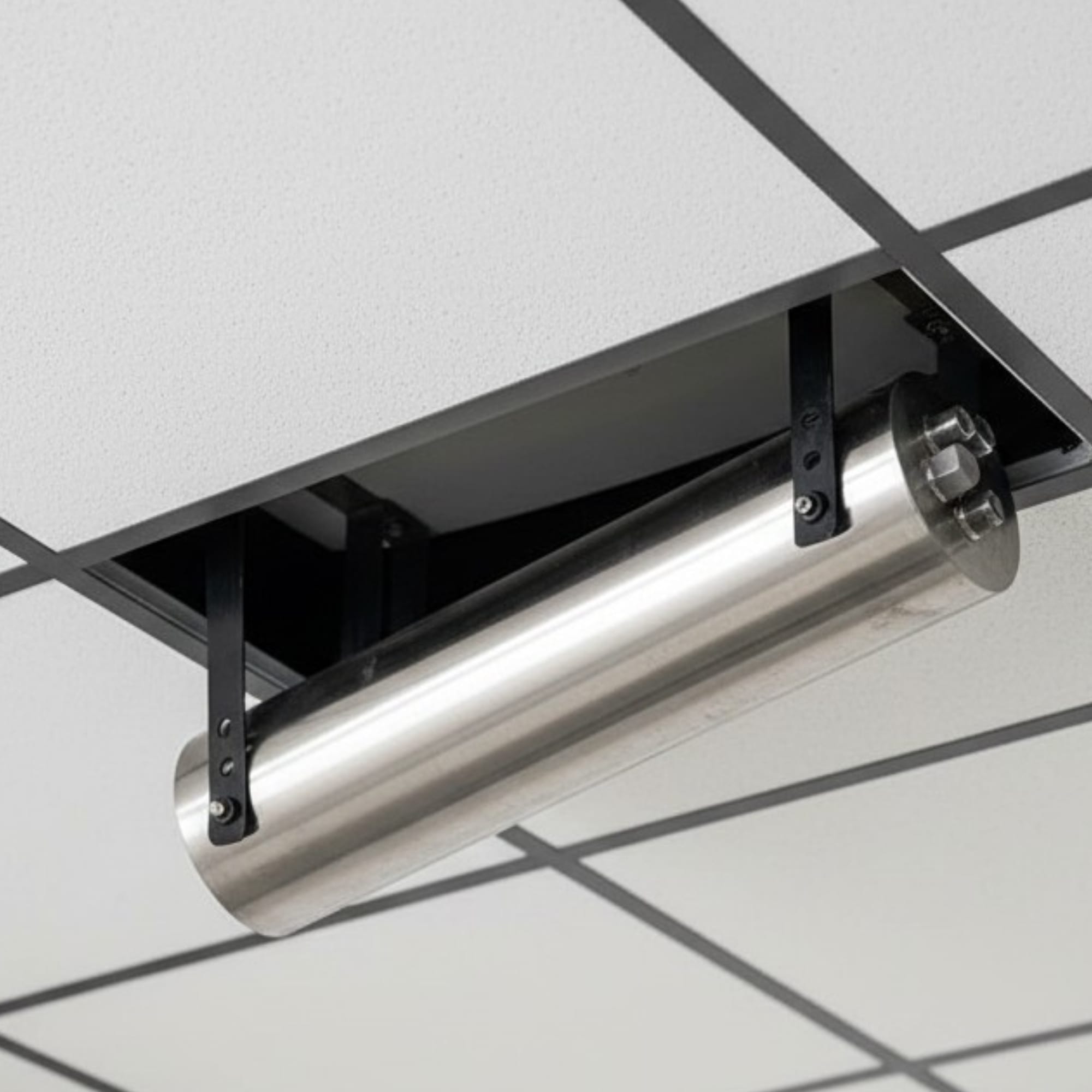

Stainless cylinder mounted in the suspended-ceiling void of a finished bathroom, accessed via a removable panel

False ceiling

Above the bathroom, hidden in service void.

Two stainless cylinders recessed in a wall niche behind a marble shower glass — part of the bathroom architecture, not bolted onto it

Hidden niche

Recessed behind tile or shower glass — part of the bathroom, not on it.

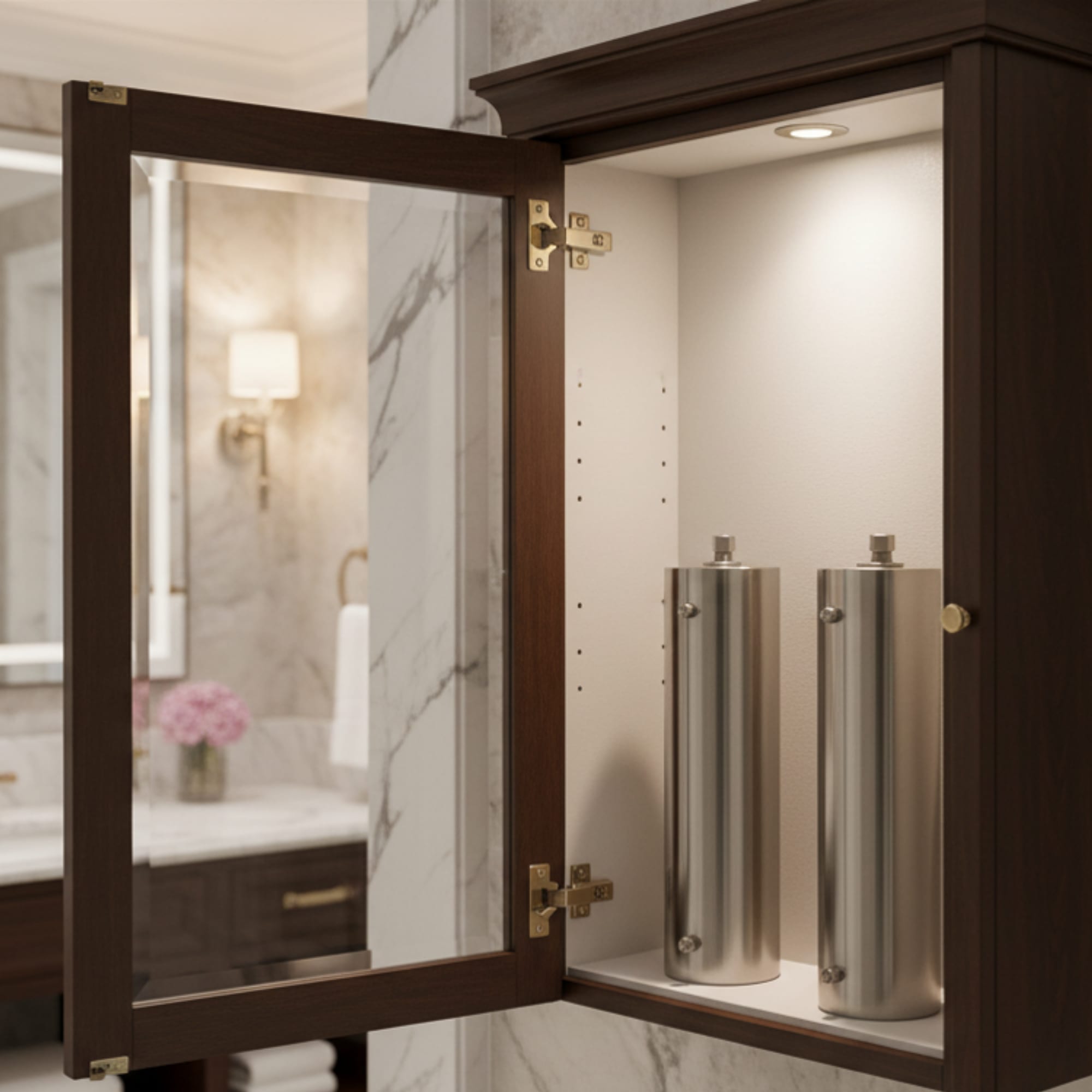

Wall cabinet

In a service cabinet flush with the wall, behind a finish door.

Compact vessels installed under the vanity counter beside the trap, hidden behind the cabinet door

Under-counter

In the vanity cabinet, beside the trap.

Two branded Uniwater vessels floor-mounted in the home utility area beside the washing machine

Utility room

For whole-house systems — plant area or garden corner.

Configurations

Three or four sizes. Decided by load, not by SKU.

We don’t expose part numbers. The configuration is decided at survey based on bathroom count, household draw, and water chemistry.

Mono

Single cylinder — from ₹14,000

Single shower, standard fittings. ~1,200 LPH peak.

Most chosen

Duo

Double cylinder — from ₹24,000

Rain shower + body jets, or two showers in parallel. ~1,800 LPH peak.

Trio

Triple cylinder — from ₹42,000

Master suite — steam, jacuzzi, multiple high-flow outlets. ~2,400 LPH peak.

Technical specifications

For the architect, plumber, or engineer.

Surface what matters; collapse what doesn’t. Open the rows below for the engineering detail.

Components from

WiloGrundfosResinTechKataloxHydranauticsDowLG ChemTulsionIonex

Capacity & sizing

Capacity range: 500 — 6,000 LPH (sized per bathroom or whole-house)
Service flow: Sized to peak household draw
Backwash flow: 1.5× service flow

Materials & media

Vessel: FRP / SS316 (Plastic or Stainless Steel)
Media: Per-solution — selected at survey
Internal piping: CPVC / SS316

Controls & regeneration

Mode: Manual or Automatic
Regeneration: Timer-based or volumetric on Automatic models
Indicators: Pressure gauges; flow indicator on Automatic models

Installation requirements

Inlet pressure: 1.5 — 4.5 kg/cm²
Power: 230V AC for Automatic models; none for Manual
Drain: Adjacent to install location
Space: Sized per configuration; see install diagram

Take the spec to your architect.

A 2-page PDF data sheet with capacities, materials, dimensions, and the install diagram.

Download data sheet

Frequently asked

What homeowners ask before they book.

How does the system stay hidden after the bathroom is finished?

Five canonical install patterns: false ceiling void, plumbing duct, wall cabinet, wall niche, under-counter. The pattern is chosen at site survey, before tile goes down. Once installed, there is no visible vessel on a wall.

Why a per-bathroom system instead of one whole-house system?

Whole-house treatment is the right answer for most homes — and the right place to spend ₹1 lakh+. BathSoft makes sense when the architecture is already finished, when only one or two bathrooms have issues, or when the homeowner wants to start with the bathroom they actually use.

Do I need to know my TDS or hardness before booking a survey?

No. The survey includes a free water test on the spot. The engineer takes the reading and walks you through what it means before any quote.

How long does installation take?

Most bathroom installs complete in a single day. Larger configurations or wall-recess installs may extend to two days.

What if my supply chemistry changes over the years?

Monthly service includes parameter testing. If the chemistry drifts — borewells often do over years — we recalibrate media, regeneration cycles, and dosing.

Can I see what the system would cost before the survey?

We publish "starting from" ranges on the relevant pages. Final price is set after the free survey, based on your specific water and home.

Is the AMC included? What does it cover?

Year one of AMC is included with every install. Standard tier is quarterly, Comprehensive is monthly. Both include parameter testing, media inspection, and a same-day written report.
